HackerBox #0132 - Samuel
Regular price
$59.00
Sale
Explore Samuel Morse's development of the single-wire telegraph system and the Morse Code signaling used in both wired telegraph and wireless communications. Practice Morse Code using an electronic, handheld trainer game. Configure the Arduino IDE to target the Arduino Nano with builtin OLED display as well as the Arduino Pro Mini development board. Leverage the Arduino Nano to program the Arduino Pro Mini over its UART interface. Program the Pro Mini to convert English text to electrical and audible Morse Code signals. Configure the Arduino Nano as a three-way Morse decoder capable of decoding an MCU-generated Morse signal, a hand-keyed Morse signal, or an audio Morse signal coupled through an analog biasing circuit. Practice coding and decoding Morse Code by hand using flip sides of a Morse Code Challenge Coin. Experiment with receiving and decoding the WWVB radio clock broadcast transmitted from Fort Collins, Colorado. Assemble a custom breadboard power supply. Practice 678 SMT solder joints on a 256 LED matrix kit. Explore controlling the 16x16 LED matrix using four shift register chips driven by either a preprogrammed microcontroller or a programmable Arduino development board. Take a glimpse into how a Morse Code kit launched the DigiKey Empire and how we are increasingly able to reverse engineer anything.

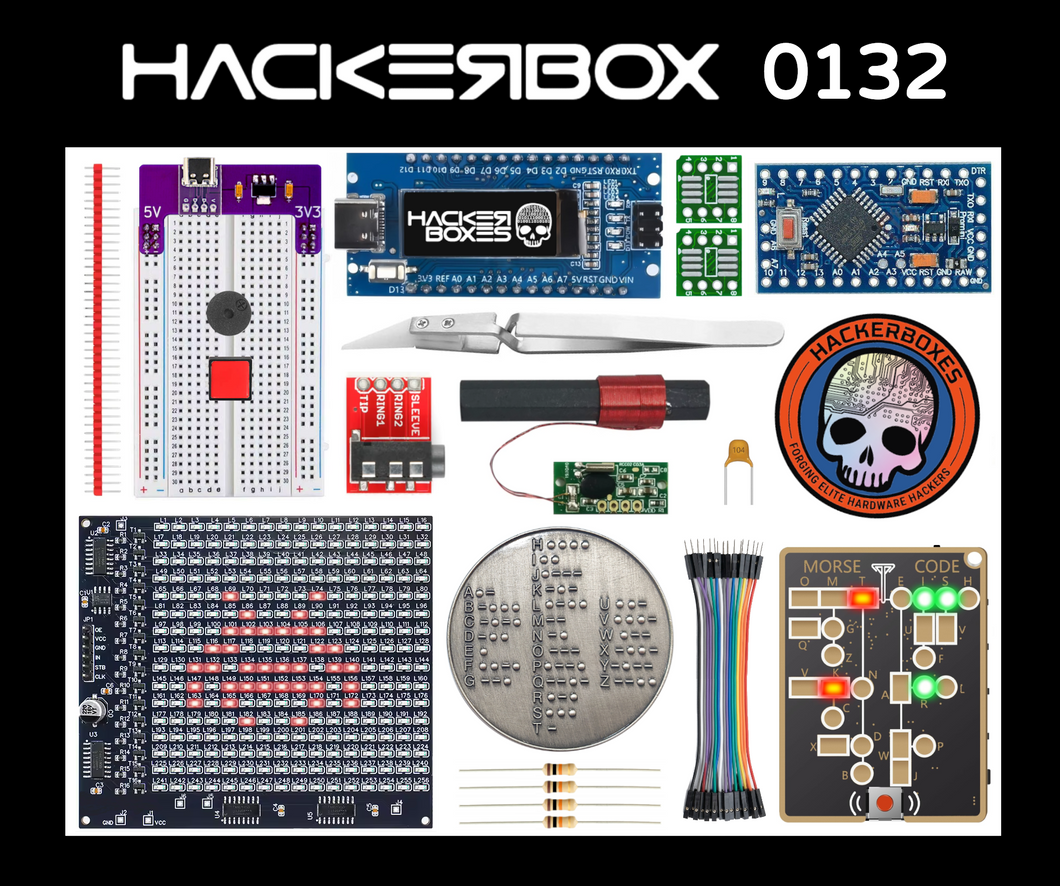

Box Contents Include:
- HackerBox 0132 Collectable Reference Card
- Morse Code Trainer Game
- Arduino Nano V3 USB-C with 0.91 inch OLED
- Arduino Pro Mini
- WWVB 60KHz Wireless Clock Module
- SMD LED Matrix Soldering Practice Kit
- Two SOP-8 to DIP-8 Adapter Boards
- 400 Point Solderless Breadboard
- Stainless Steel Tweezers with Ceramic Tip
- 1x40 Red Male Header Pins
- 20 Male-to-Female 10 cm Dupont Jumper Wires
- Solderless Breadboard Power Supply Kit
- Power Supply PCB
- USB-C Socket Breakout
- AMS1117-3.3 Regulator
- Two 10uF Tantalum Capacitors
- 2x8 Male Header Pins
- Morse Code Interface Kit
- 3.5 mm Audio Headphone Jack Breakout
- 100nF (104) Ceramic Capacitor
- Four 10K Resistors
- 12 x 12 mm Tactile Button
- Red Tactile Button Cap
- Passive Piezo Buzzer
- Morse Code Challenge Coin
- Elite Holographic Wire-Head Sticker
Online resources:
- Official Online Guide for HackerBox 0132.
