HackerBox #0092 - inline
Regular price
$59.00
Sale
Explore inline hardware insertion for man-in-the-middle manipulation of both USB devices and composite video streams. Configure both the RP2040-One Development Board and an Arduino UNO Development Board for use with the Arduino IDE programming environment. Exploit Programmable Input Output (PIO) hardware blocks of the Raspberry Pi RP2040 microcontroller to bit-bang a USB host interface. Leverage the USB host interface to capture and alter USB keyboard signals. Assemble a video experimenter system capable of overlaying text and graphics onto composite video signals, capturing video frames for image processing and machine vision, and decoding closed captions and other data embedded within television signals. Understand and apply video signal conversion technologies.

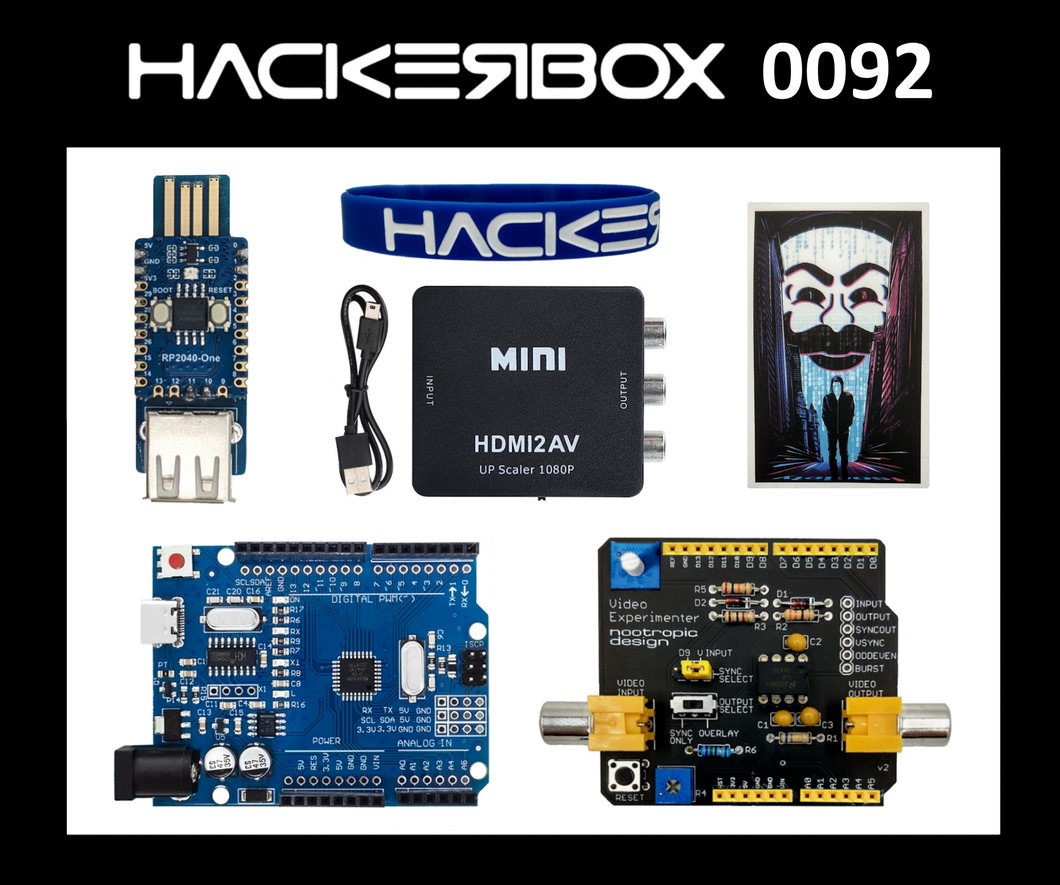

Box Contents Include:
- HackerBox 0092 Collectable Reference Card
- RP2040-One 4MB Development Board
- Exclusive HackerBox RP2040 Inline USB Kit
- RP2040 Inline USB Circuit Board
- Female USB-A Right-Angle Through-Hole Socket
- Arduino UNO-R3 ATmega328P Development Board
- Video Experimenter Shield Kit
- Video Experimenter Shield PCB
- LM1881N Video Sync Separator Chip
- Two RCA PCB-Mount Jacks
- Two 1N4148 Diodes
- Three 0.1uF Tantalum Capacitors
- 10K PCB-Mount Potentiometer
- 100K PCB-Mount Potentiometer
- 1K Resistor
- 75R Resistor
- 20K Resistor
- 330R Resistor
- 680K Resistor
- Tactile Momentary Switch
- DPDT Through-Hole Slide Switch
- DIP-8 IC Socket
- Yellow Jumper Shorting Block
- Yellow Stacking Arduino Header Pin Set
- HDMI-to-AV Video Converter
- fsociety Hacker Sticker
- Exclusive HackerBoxes Wristband
- Official Online Guide for HackerBox 0092
- The Video Experimenter Shield was designed by nootropic design and released under CC BY-SA 3.0 US License.
- The Arduino TVout library was written by Myles Metzler and released under MIT License.
