HackerBox #0090 - Modem

Explore various analog and digital modulation schemes. Learn about the Radio Data System (RDS) standard used to embed small amounts of digital information into FM radio broadcasts. Configure an FM receiver with RDS decoding controlled by an Arduino Nano microcontroller. Assemble and operate a transmitter for FM radio and RDS data also controlled by an Arduino Nano microcontroller. Configure an MP3 player with microSD and USB storage interfaces to decode and supply audio signals for the FM radio transmitter.

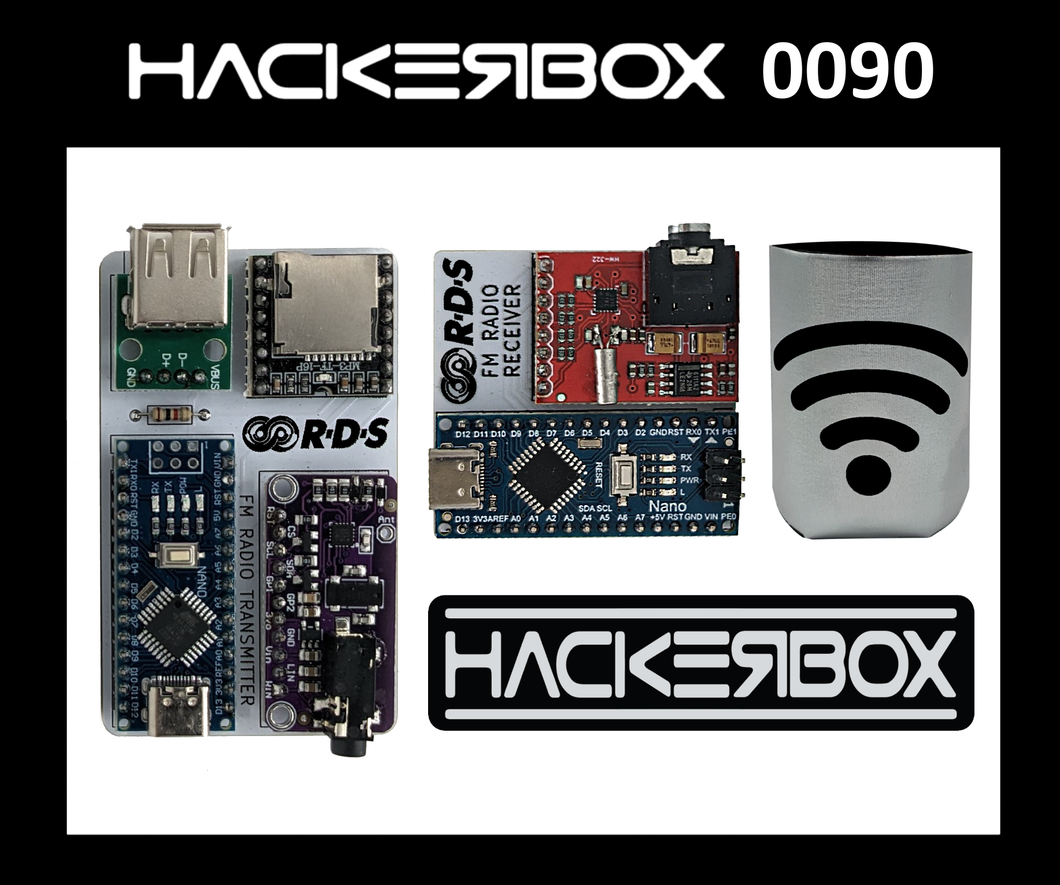

Box Contents Include:

• HackerBox 0090 Collectable Reference Card
• Two ATMega328P Arduino Nanos with USB-C
• Exclusive FM Receiver PCB
• Exclusive FM Transmitter PCB
• Si4703 Tuner Module

• Si4713 Transmitter RDS Module
• MP3 Player Module
• USB-A Socket Breakout
• 1K Axial Lead Resistor
• Exclusive Airwaves Koozie
• Exclusive HackerBox Sticker

Online resources:

• Official Online Guide for HackerBox 0090
• Unbox & Build Video by 463N7
