HackerBox #0084 - Rework

HackerBox #0084 - Rework

Regular price $59.00 Sale

Explore PCB rework tools and techniques. Configure development tools for the ESP8266 D1 Mini 2.4GHz Wi-Fi Module. Assemble a minimal embedded test platform using the ESP8266 D1 Mini module, OLED display, input buttons, and an output RGB LED. Leverage the minimal embedded test platform to implement a graphical game, packet capture tool, and other network security experiments.  Apply a logic probe to debug digital circuits and test jumper wire connections while making wire mods. Perform a bodge wire modification to repair an RGB LED circuit. Extend the number of MCU output pins by making PCB cuts and jumps to add a digital SIPO shift register configured to drive multiple LEDs. Deadbug mod a PISO shift register to extend the number of MCU input pins and support a sixteen button keypad. Assemble an SMD soldering practice kit to improve surface mount soldering skills.

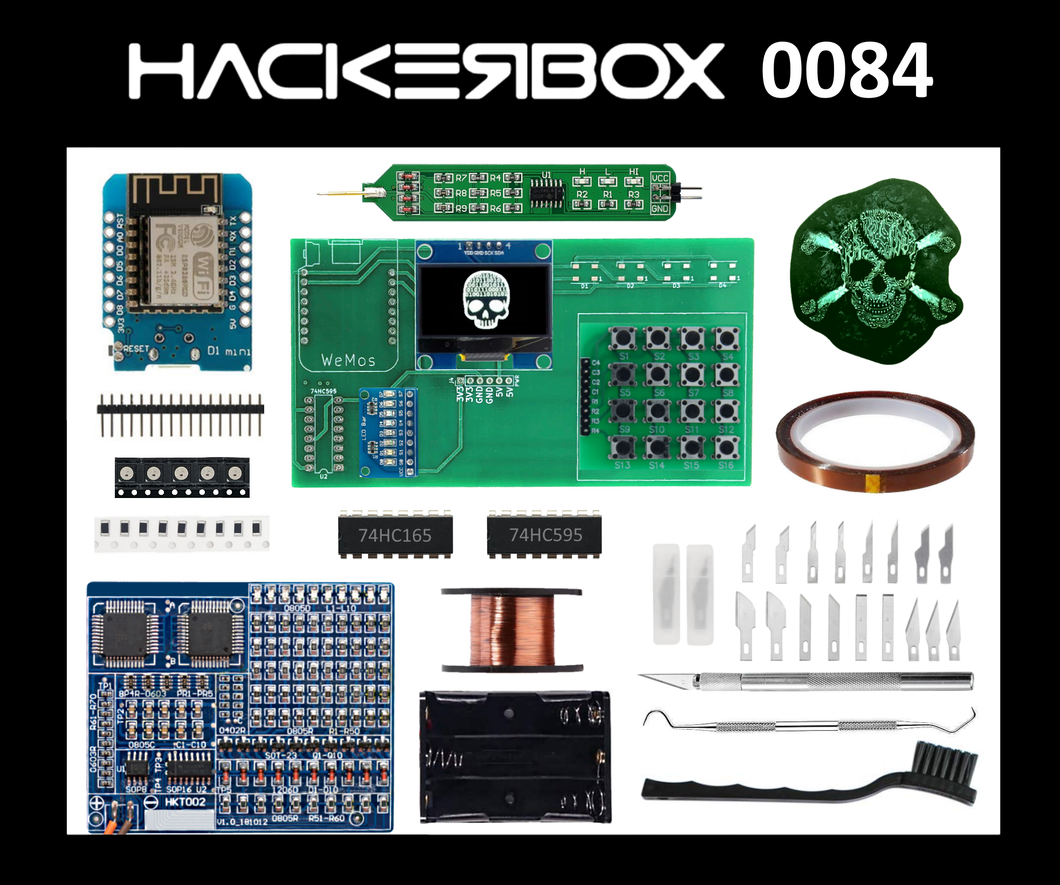

Box Contents Include:

  • HackerBox 0084 Collectable Reference Card
  • PCB Rework Kit
  • SMD Soldering Practice Kit
  • Logic Probe
  • Hobby Knife with 18 Assorted Blades
  • Stainless Steel Dental Pick
  • Copper Enameled Magnet Wire Spool
  • Polyimide High Temperature Tape 10mm
  • PCB Cleaning Brush
  • PCB Pirate Skull Sticker

PCB Rework Kit Includes:

  • Exclusive HackerBox Rework PCB
  • ESP8266 D1 Mini 2.4GHz Wi-Fi Module
  • OLED 1.3 inch Display
  • 4x4 Tactile Button Matrix
  • Eight Bit LED Module
  • Five WS2812B RGB LEDs
  • 74HC165N Shift Register
  • 74HC595N Shift Register
  • 10K SMD 1206 Size Resistors
  • Male 2.54mm Header Pins
