HackerBox #0071 - Ranger

Explore various electronic techniques to sense the presence of a physical object (proximity detection), determine how far away the object is (ranging or locating), or analyze the motion or speed of the object. Configure the Arduino development environment and various libraries to work with ATmega328P microcontroller boards.  Program flexible strips of addressable RGB LEDs.  Produce colorful LED light shows responsive to sound using microphone sensors.  Assemble and program a Doppler radar speed sensor system with operational amplifier interface circuitry. Wire and program laser distance ranging modules, thermal PIR motion sensors, Doppler radar motion sensors, and vibration detectors.

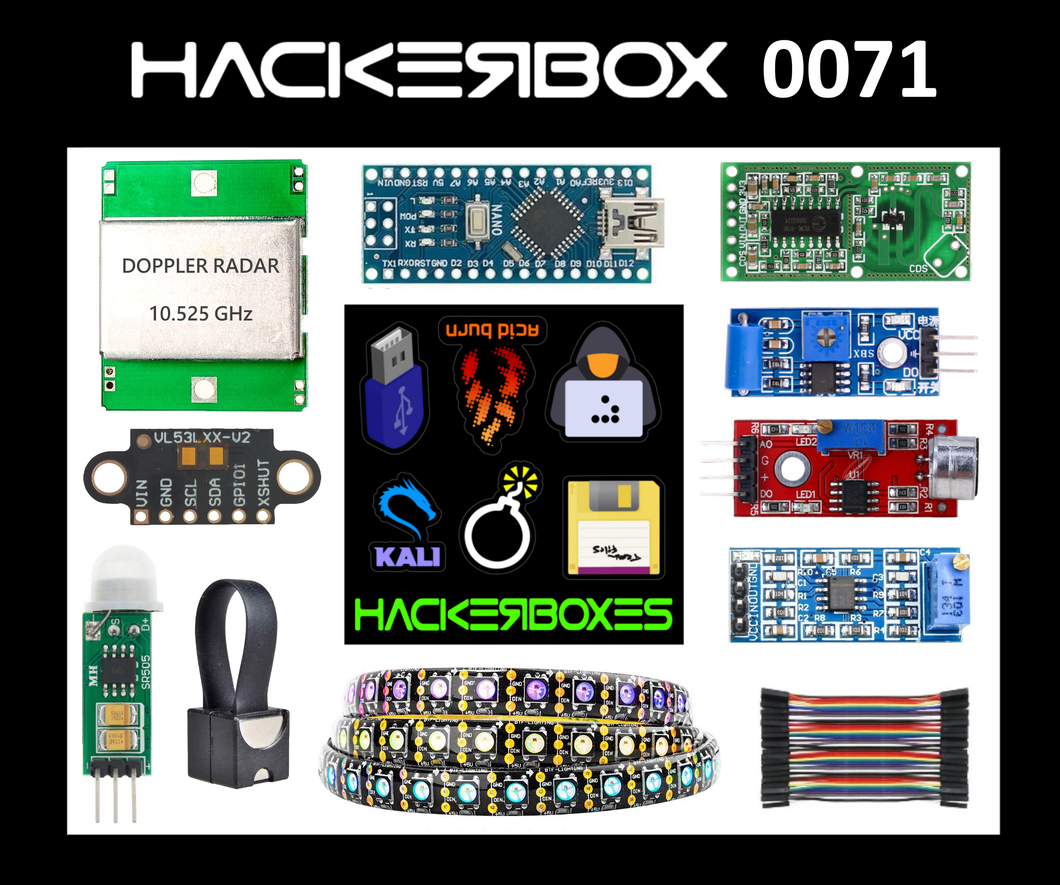

Box contents include:

• HackerBox 0071 Collectable Reference Card
• HB100 Doppler Radar Module
• LM358 OpAmp Module for HB100 Radar
• RCWL-0516 Doppler Radar Proximity Sensor
• GY-VL53L0X Laser Ranging Module
• ATmega328P Arduino Nano 5V 16Mhz MiniUSB
• Addressable RGB LED 100 Pixel Strip
• HC-SR505 PIR Motion Sensor Module
• KY-037 Sound Detection Sensor Module
• SW-420 Vibration Sensor Module
• Female-Female DuPont Jumper Wires
• Magnetic AA/AAA Cell 5V MicroUSB Supply
• Exclusive Sheet of Seven Hacker Stickers

Online resources:

• Official Online Guide for HackerBox 0071
